Robbins Double Shield Gears Up for India Water Tunnel

The TBM will bore tunnel No. 2 of the Pula Subbaiah Veligonda project for Coastal Projects Pvt. Ltd, a sub-contractor to the SEW/ Hindustan Construction Company (HCC) JV. The reservoir intake will be located approximately 60 m (200 ft) away from the 7 m (23 ft) diameter tunnel No.1, which is currently being excavated.

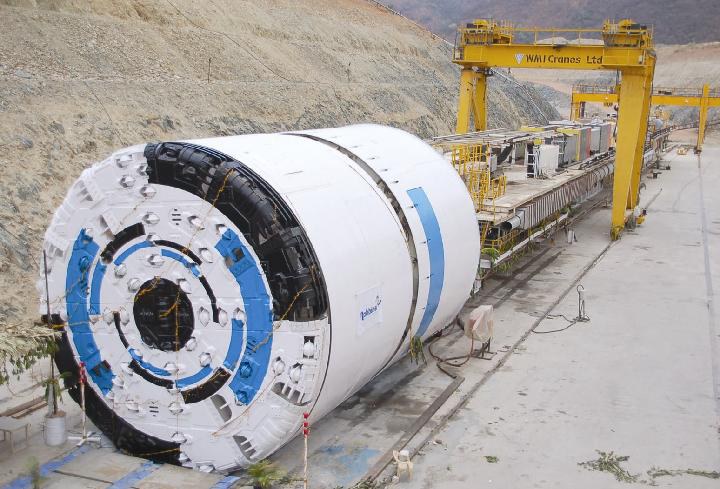

Using Onsite First Time Assembly (OFTA), the Double Shield was assembled in approximately four months. OFTA is a process that allows machine components to be initially assembled at the jobsite, rather than in a manufacturing facility, typically providing savings in terms of man-hours and shipping costs. "The real savings in using OFTA were time-related-the lead time between the TBM order and components arriving onsite was much shorter. The machine did not have to be assembled and disassembled at a shop prior to shipment," said Jim Clark, Robbins Field Service Project Manager.

Assembly went well despite harsh local temperatures, which can climb to 45˚C (113˚F) daily. In addition, some components could only be installed at night due to thermal expansion in the midday heat. Robbins is now providing a formal training program for contractor personnel, covering all aspects of TBM maintenance and operation prior to the launch.

A third, identical 10.0 m (32.8 ft) HP Double Shield will be built using OFTA at the nearby Alimineti Madhava Reddy (AMR) Tunnel in June. The machine will join another Double Shield of the same diameter that has been boring at the opposite end of the tunnel since May 2008. Both AMR and Veligonda projects draw water from Srisailam Reservoir and are part of the Andhra Pradesh government’s massive scheme to provide ample irrigation and drinking water in the drought-prone region.

Utilizing back-loading 20 inch cutters, the Veligonda machine will excavate a mixture of quartzite, shale, and phyllite from 90 to 225 MPa (13,000 to 33,000 psi) UCS. As the TBM bores, it will erect 300 mm (12 inch) thick concrete segments in a 6+1 arrangement, making the final tunnel diameter 9.2 m (30 ft). Muck haulage will require one of the most extensive conveyor systems ever used in India. The continuous steel cable belt, provided by Robbins, will extend 19.2 km (11.9 mi) and will require four main drives and three booster drives. All tunnels are scheduled to go online in 2014.
