TT-UK introduces the NEW GRUNDODRILL 11XP to the UK and Ireland

Oct 15, 2015

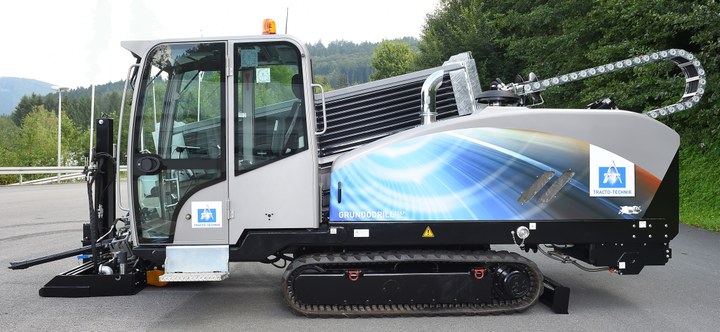

The Grundodrill 11 XP was launched in early September at the NordBau trade fair in Germany and is the latest addition to the TT range of Horizontal Directional drilling Rigs.

With strong and robust engineering, the 11XP has been designed for inner city use and for bores in the most confined spaces and has a working width of 1,750mm. A narrow drill rig with dimensions of only 570mm between the drill axis for applications such as close proximity to buildings, along narrow paths, in confined spaces and it is ideal in urban areas.

Boasting a high performance eco-friendly engine, with 119 kW – Tier 4 , excellent design and noise reduction (66dBA), it has pushing and pulling forces of 105 kN  and Torque of 3,300 Nm. Fully automatic rod exchange , automatic drilling and paddle mode and it has a total weight of only 7.9 tonnes which makes it extremely stable combined with a good weight to drilling power ratio.

Features

  • Maximum drilling fluid performance, up to 180 litres/min Bentonite flow capacity
  • Easy replacement of rod exchange box for long frilling operations
  • Dynamic impact hammer rate 1500 min -1 (ideal when drilling in tough ground conditions)
  • Maximum bore hole diameter 400mm (depending on soil conditions)
  • Maximum drilling length 250m (depending on soil conditions)
  • Monitoring and recording of digital drilling data according to the latest standards
  • Pre-set functions for online tensile load measuring and cable guided drilling
  • High Pressure Water cleaning system
  • Remote diagnostics
  • Superior and comfortable operator’s cabin
  • Low operating costs
  • Average diesel consumption 6 litres/hour subject to control cycle
  • Service and Maintenance friendly with easy access to machine components
